Lesson 12: Volume of Right Prisms

Let’s look at volumes of prisms.

12.1: Three Prisms with the Same Volume

Rectangles A, B, and C represent bases of three prisms.

  1. If each prism has the same height, which one will have the greatest volume, and which will have the least. Explain your reasoning.
  2. If each prism has the same volume, which one will have the tallest height, and which will have the shortest. Explain your reasoning.

12.2: Finding Volume with Cubes

This applet has 64 snap cubes, all sitting in the same spot on the screen, like a hidden stack of blocks. You will always know where the stack is because it sits on a gray square. You can keep dragging blocks out of the pile by their red points until you have enough to build what you want.

Click on the red points to change from left/right movement to up/down movement.

There is also a shape on the grid. It marks the footprint of the shapes you will be building.

  1. Using the face of a snap cube as your area unit, what is the area of the shape? Explain or show your reasoning.
  2. Use snap cubes to build the shape from the paper. Add another layer of cubes on top of the shape you have built. Describe this three-dimensional object.

GeoGebra Applet PKDtR4vP

  1. What is the volume of your object? Explain your reasoning.
  2. Right now, your object has a height of 2. What would the volume be

    1. if it had a height of 5?

    2. if it had a height of 8.5?

12.3: Can You Find the Volume?

The applet has a set of three-dimensional figures. For each figure,

  1. Determine whether the shape is a prism.
  2. For each prism, additionally:
    1. Find the area of the base of the prism.
    2. Find the height of the prism.
    3. Calculate the volume of the prism.
  Is it a prism? area of prism base (cm2) height (cm)  volume (cm3)
figure A
figure B
figure C
figure D
figure E
figure F
  • Choose a figure using the slider.
  • Rotate the view using the Rotate 3D Graphics tool marked by two intersecting, curved arrows.
  • Note that each polyhedron has only one label per unique face. Where no measurements are shown, the faces are identical copies.
  • Use the distance tool, marked with the "cm," to click on any segment and find the height or length.
  • Troubleshooting tip: the cursor must be on the 3D Graphics window for the full toolbar to appear.

GeoGebra Applet dGeTZDSv

12.4: What’s the Prism’s Height?

There are 4 different prisms that all have the same volume. Here is what the base of each prism looks like.

  1. Order the prisms from shortest to tallest. Explain your reasoning.

  2. If the volume of each prism is 60 units3, what would be the height of each prism?

  3. For a volume other than 60 units3, what could be the height of each prism?
  4. Discuss your thinking with your partner. If you disagree, work to reach an agreement.

Summary

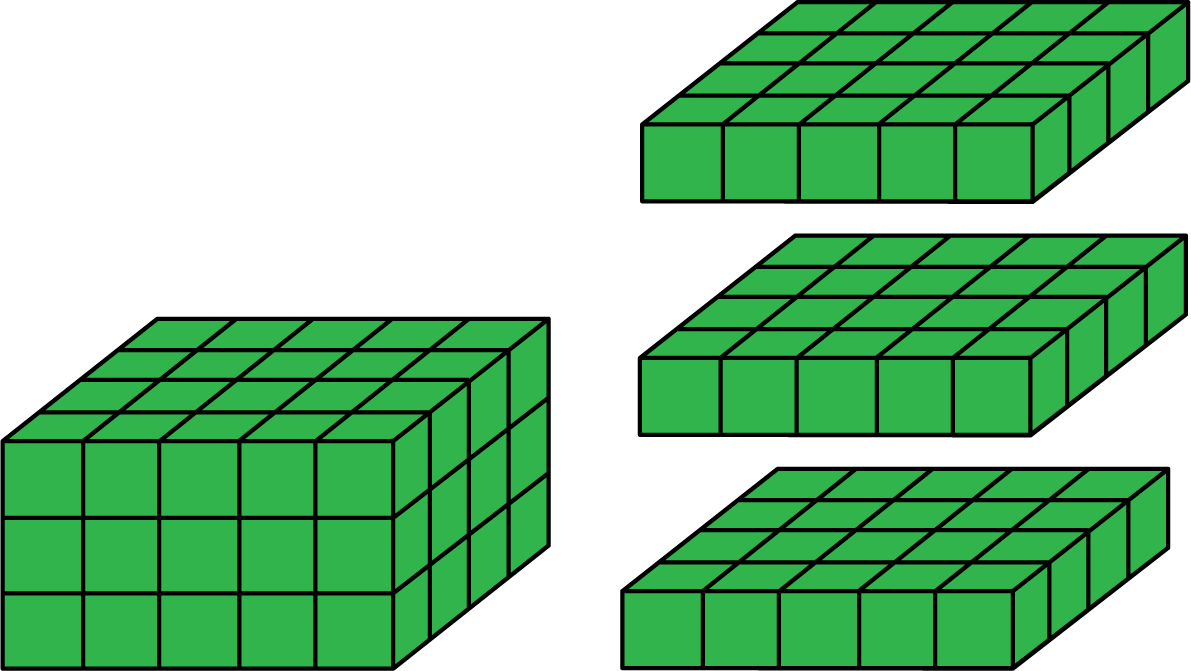

Any cross section of a prism that is parallel to the base will be identical to the base. This means we can slice prisms up to help find their volume. For example, if we have a rectangular prism that is 3 units tall and has a base that is 4 units by 5 units, we can think of this as 3 layers, where each layer has $4\boldcdot 5$ cubic units.

That means the volume of the original rectangular prism is $3(4\boldcdot 5)$ cubic units.

This works with any prism! If we have a prism with height 3 cm that has a base of area 20 cm2, then the volume is $3\boldcdot 20$ cm3 regardless of the shape of the base. In general, the volume of a prism with height $h$ and area $B$ is

$$V = B \boldcdot h$$

For example, these two prisms both have a volume of 100 cm3.
