Lesson 6: Even More Graphs of Functions

Let’s draw a graph from a story.

6.1: Dog Run

Here are five pictures of a dog taken at equal intervals of time.

Diego and Lin drew different graphs to represent this situation:

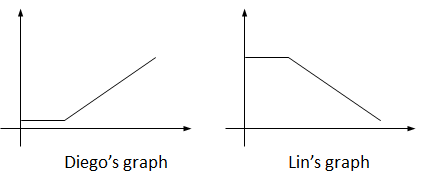

Two graphs of two connected line segments labeled “Diego’s graph” and “Lin’s graph.” On Diego’s graph, the first line segment begins on the vertical axis and slightly above the horizontal axis. It moves horizontally and to the right. The second line segment begins where the first line segment ends and moves steadily upward and to the right.  On Lin’s graph, the first line begins on the vertical axis and high above the horizontal axis. It moves horizontally and to the right. The second line segment begins where the first ends, moves steadily downward and to the right, ending slightly above the horizontal axis.
They both used time as the independent variable. What do you think each one used for the dependent variable? Explain your reasoning.

6.2: Which Graph is It?

For each situation,

  • name the independent and dependent variables
  • pick the graph that best fits the situation, or sketch the graph if one isn't provided
  • label the axes
  • answer the question: which quantity is a function of which? Be prepared to explain your reasoning.
  1. Jada is training for a swimming race. The more she practices, the less time it takes for her to swim one lap.
  2. Andre adds some money to a jar in his room each week for 3 weeks and then takes some out in week 4.

6.3: Sketching a Story about a Boy and a Bike

You will use the tools in the applet for creating a visual display that shows your response to each question.

Here is a story: “Noah was at home. He got on his bike and rode to his friend’s house and stayed there for awhile. Then he rode home again. Then he rode to the park. Then he rode home again.”

  1. Sketch a graph of this story.

  2. What are the two quantities? Label the axes with their names and units of measure. (For example, if this were a story about pouring water into a pitcher, one of your labels might say “volume (liters).”)

  3. Which quantity is a function of which? Explain your reasoning.
  4. Based on your graph, is his friend’s house or the park closer to Noah's home? Explain how you know.
  5. Read the story and all your responses again. Does everything make sense? If not, make changes to your work.

Note: To change the values on the axes, select the Move Graphics tool

A “Move Graphics” icon with 4 arrows pointing up, down, left, and right.

click near the end of the axis you want to change, and drag it to grow or shrink it.

GeoGebra Applet TdyBxNRW

Summary

Here is a graph showing Andre's distance as a function of time.

A graph consisting of 3 line segments in the coordinate plane with the origin labeled "O". The horizontal axis is labeled “time” and the vertical axis is labeled “distance.” The first line segment starts on the vertical axis and above the origin. It moves steadily upward and to the right. The second line segment begins where the first line segment ends and moves horizontally and to the right. The third line segment begins where the second line segment ends and moves steadily downward and to the right, ending on the horizontal axis.

For a graph representing a context, it is important to specify the quantities represented on each axis. For example, if this is showing distance from home, then Andre starts at some distance from home (maybe at his friend’s house), moves further away (maybe to a park), then returns home. If instead the graph is showing distance from school, the story may be Andre starts out at home, moves further away (maybe to a friend's house), then goes to school. What could the story be if the graph is showing distance from a park?
